GTP-040 TDS

GTP-040 Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces.

Key words:

Classification:

Silicon Sheet

Enquiry hotline:

+8613929499684

Online message

Detail description

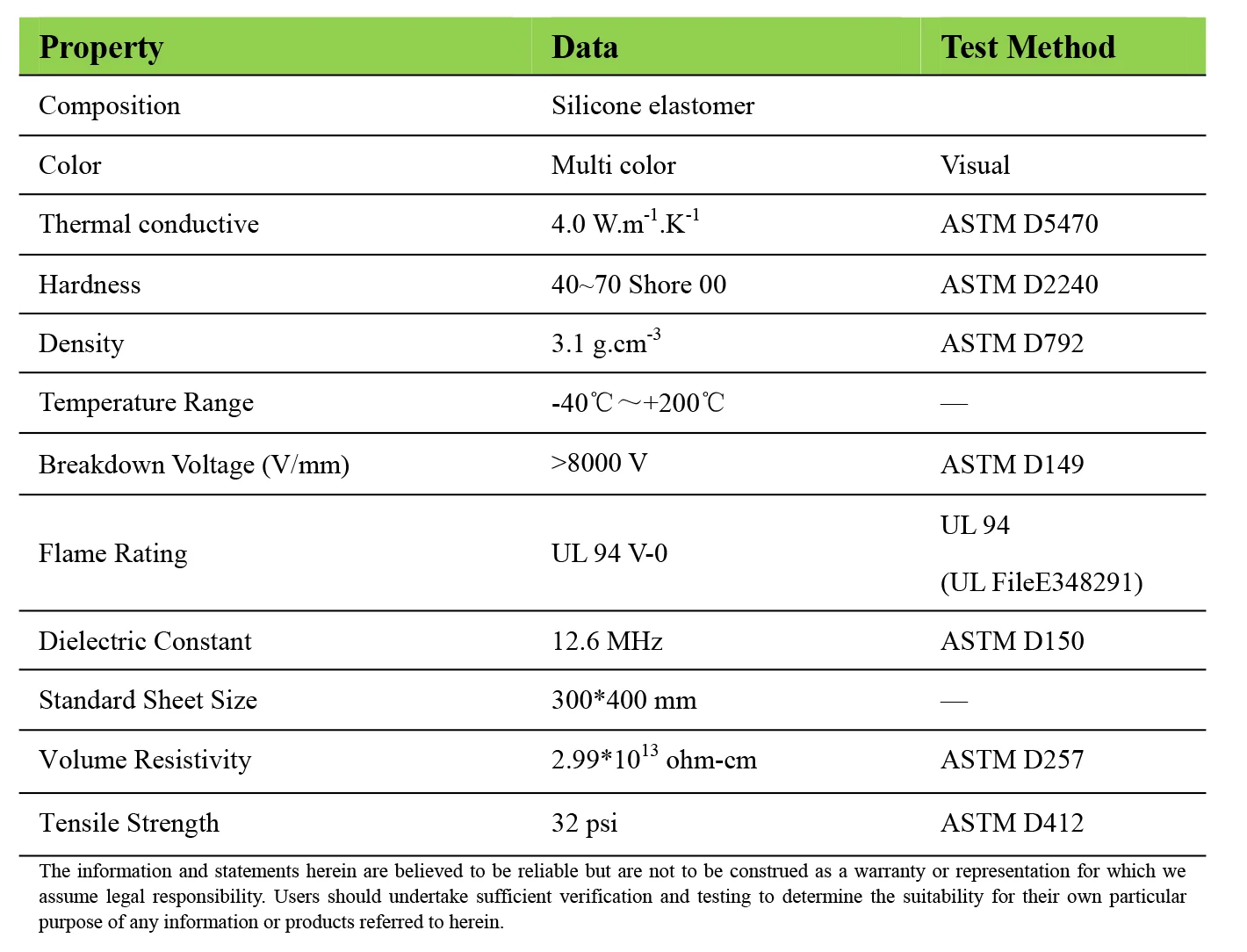

PRODUCT DESCRIPTION
GTP-040 Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces.
Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

Features and Benefits
● Thermal conductivity 4.0 W/m-K
● High Thermal Conductivity
● Natural tacky
● Good Electrically isolating
● Easy to assembly

Applications
● Computer services: CPU,
● Heat sink, Memory modules
● LED Lighting, LCD-TV
● Military Electronics
● Power Supplies
● Telecom services,
● Wireless instruments
● Automotive control services

Availability
● 0.012 inch to 0.4 inch(0.3mm to 10.0mm)
● Stand sheet size is 12＂x 16＂
● FG designates Fiberglass
● DC1 designates proprietary option eliminating tack form one side
● A is meet add addition PSA A1=one side PSA, A2=two side PSA

Examples
● GTP-040(80Shore00) =special hardness 80Shore00
● GTP-040-100 =0.1 inch thick material
● GTP-040FG-010=0.01 inch material with Fiberglass
● GTP-040DC1-100=0.1 inch thickness material with one side none-tacky option
● GTP-040A1(3M467)-100=0.1 inch thickness material with 3M467 one side
